Updating Equipment Settings

Complete the following setting to update equipment settings:

1. L og in to the ONE system.

2. Click Menus/Favs > Administration > Equipment Settings.
   In the NEO UI, users can click on the Menu/Favs icon on the left sidebar and type in the name of the screen in the menu search bar. For more information, see "Using the Menu Search Bar."

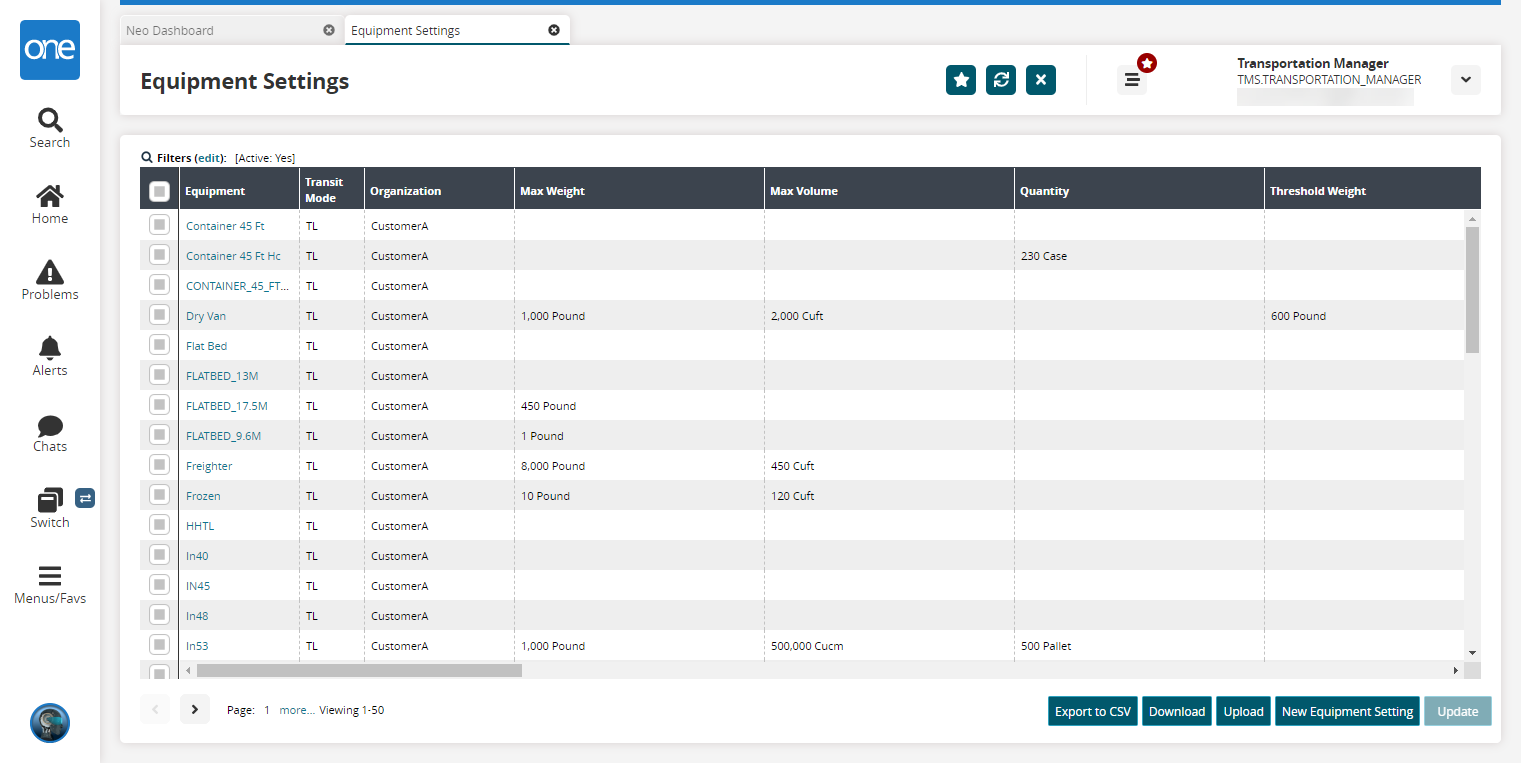

   The Equipment Settings screen appears.





3. In the Equipment column, click the name of the equipment to update.

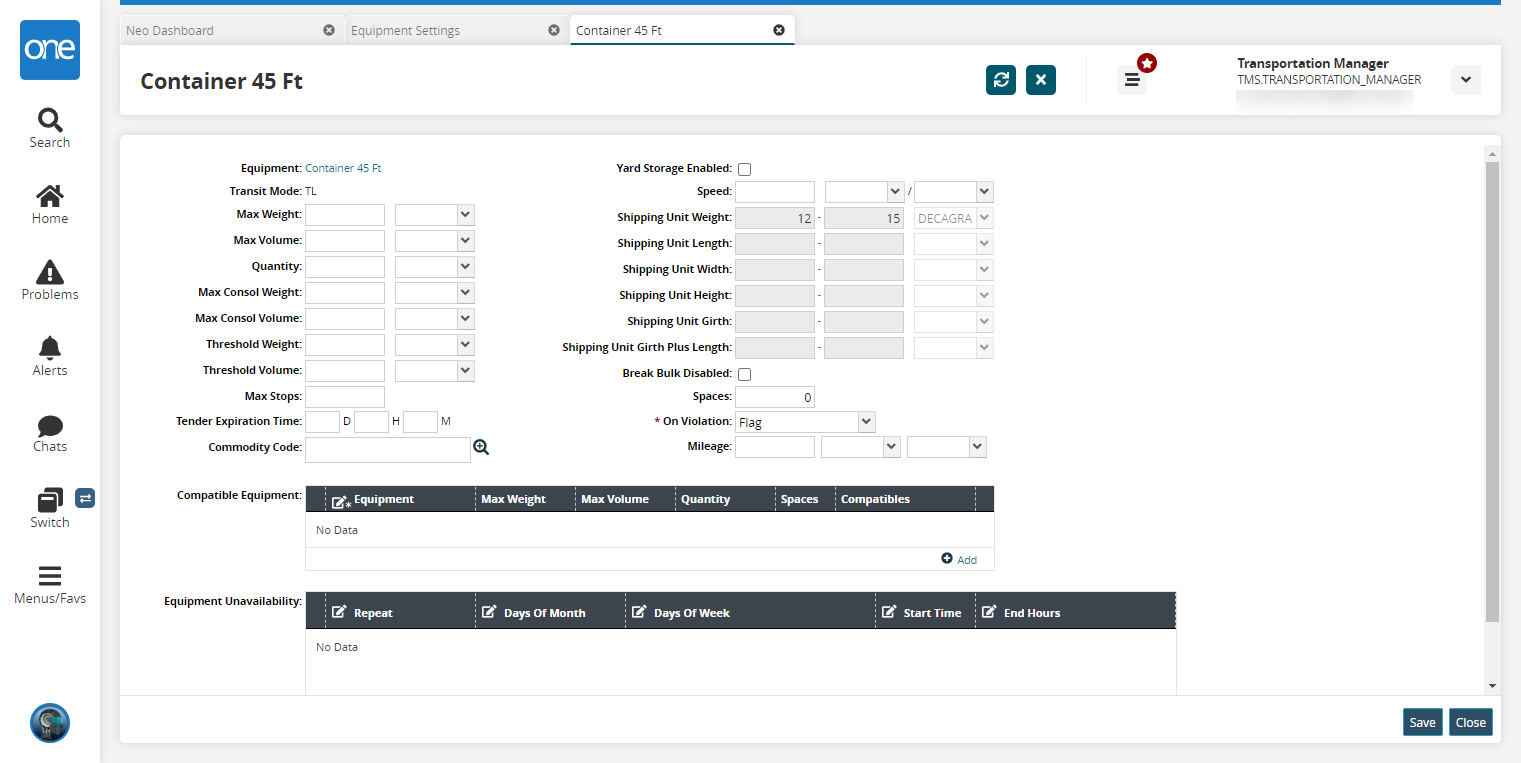

   The equipment details screen displays.





4. Enter values for fields described in the table below. Fields with an asterisk ( * ) are required.

   Field	Description
   Based on Equipment	Use the picker tool to select a value from the list of existing equipment. Settings from existing equipment will populate the fields.
   * Equipment	Select an equipment type from the dropdown menu.
   * Transit Mode	Select a mode of transit from the dropdown menu.
   Max Weight	Enter a value for the maximum weight. Select the unit of measure from the dropdown menu.
   Max Volume	Enter a value for the maximum volume. Select the unit of measure from the dropdown menu.
   Quantity	Enter a value for the quantity. Select the unit of measure from the dropdown menu.
   Max Consol Weight	Enter a value for the maximum consol weight. Select the unit of measure from the dropdown menu.
   Max Consol Volume	Enter a value for the maximum consol volume. Select the unit of measure from the dropdown menu.
   Threshold Weight	Enter a value for the threshold weight. Select the unit of measure from the dropdown menu.
   Threshold Volume	Enter a value for the threshold volume. Select the unit of measure from the dropdown menu.
   Max Stops	Enter a value for the maximum number of stops allowed for the equipment.
   Tender Expiration Time	Enter in values for days, hours, and minutes until a tender for this equipment expires.
   Commodity Code	Enter or select the commodity code using the picker tool. Users can select multiple values for the Commodity Code field.
   Yard Storage Enabled	Check the box to enable yard storage.
   Speed	Input a numerical value, unit of measure, and unit of time.
   Shipping Unit Weight	Enter a beginning and end value for a weight range. Select the unit of measure from the dropdown menu.
   Shipping Unit Length	Enter a beginning and end value for a length range. Select the unit of measure from the dropdown menu.
   Shipping Unit Width	Enter a beginning and end value for a width range. Select the unit of measure from the dropdown menu.
   Shipping Unit Height	Enter a beginning and end value for a height range. Select the unit of measure from the dropdown menu.
   Shipping Unit Girth	Enter a beginning and end value for a girth range. Select the unit of measure from the dropdown menu.
   Shipping Unit Girth Plus Length	Enter a beginning and end value for a range for the girth plus the length. Select the unit of measure from the dropdown menu.
   Break Bulk Disabled	Check the box if the ability to break down bulk items is disabled.
   Spaces	Enter a value for the spaces that are configured for this piece of equipment.
   On Violation	Select the action performed from the dropdown menu if a violation occurs. Flag - Instructs the system to generate a flag when the Overweight/Oversize condition occurs. Warn - Instructs the system to send a warning to the Transportation Manager when the Overweight/ Oversize condition occurs. Fail - Instructs the system to fail the shipment or movement when the Overweight/Oversize condition occurs.
   Mileage	Enter a mileage and select a unit of measure.

5. Click Save.
   A success message appears.
