Creating an Inbound Pipeline Interface

The basic workflow to create an inbound integration pipeline:

1. Create an integration pipeline.

2. Create a pipeline interface.

3. Create a message queue.

4. Execute the pipeline.

5. View the pipeline execution history.

This page provides the instructions for the second step in this workflow. See the other sections for information on the other steps.

Complete the following steps to create a new pipeline interface:

1. Follow the steps to create an integration pipeline. See the "Creating an Integration Pipeline" section for more information.

2. Click Menu/Favs > Tools > Integration > Pipeline Interfaces.

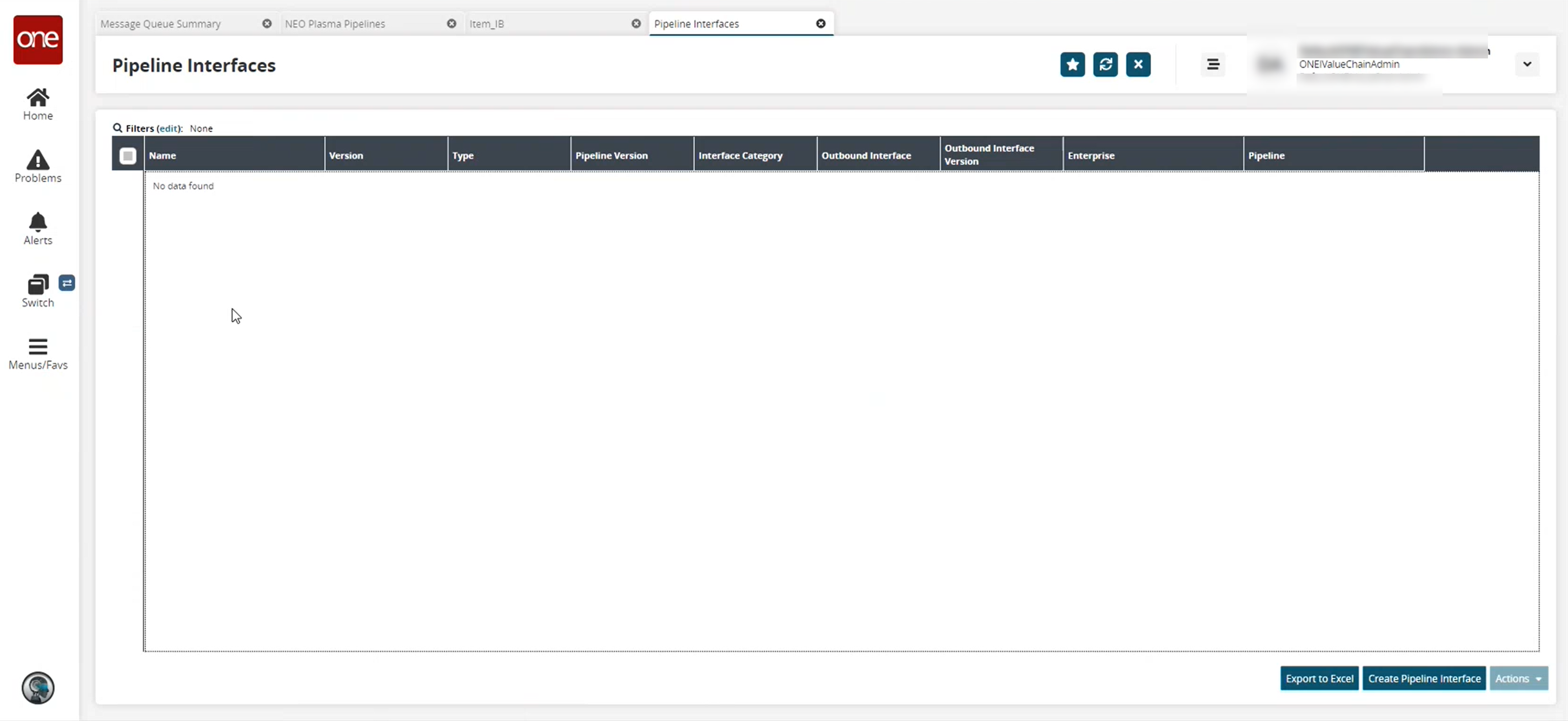

   The Pipeline Interfaces screen appears.









3. Click the Create Pipeline Interface button.

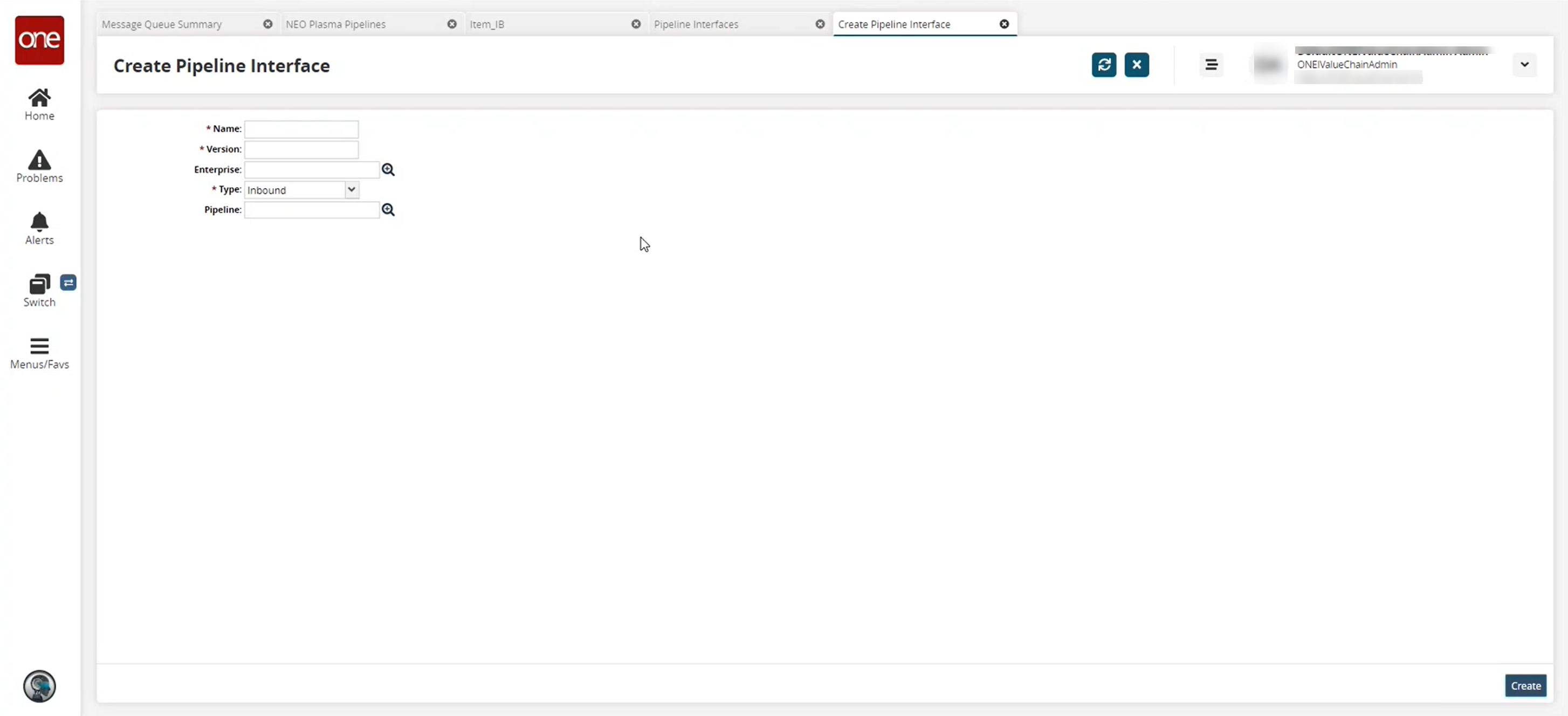

   The Create Pipeline Interface screen appears.








4. Fill out the following fields. Fields with an asterisk ( * ) are required.

   Field	Description
   * Name	Enter a name for the pipeline interface.
   * Version	Enter a version number.
   Enterprise	Use the picker tool to select an enterprise.
   * Type	Select the interface type from the dropdown list. The options are Inbound and Outbound. For this example, we selected Inbound.
   Pipeline	Use the picker tool to select a pipeline you want to use with this interface.

5. Click Create.

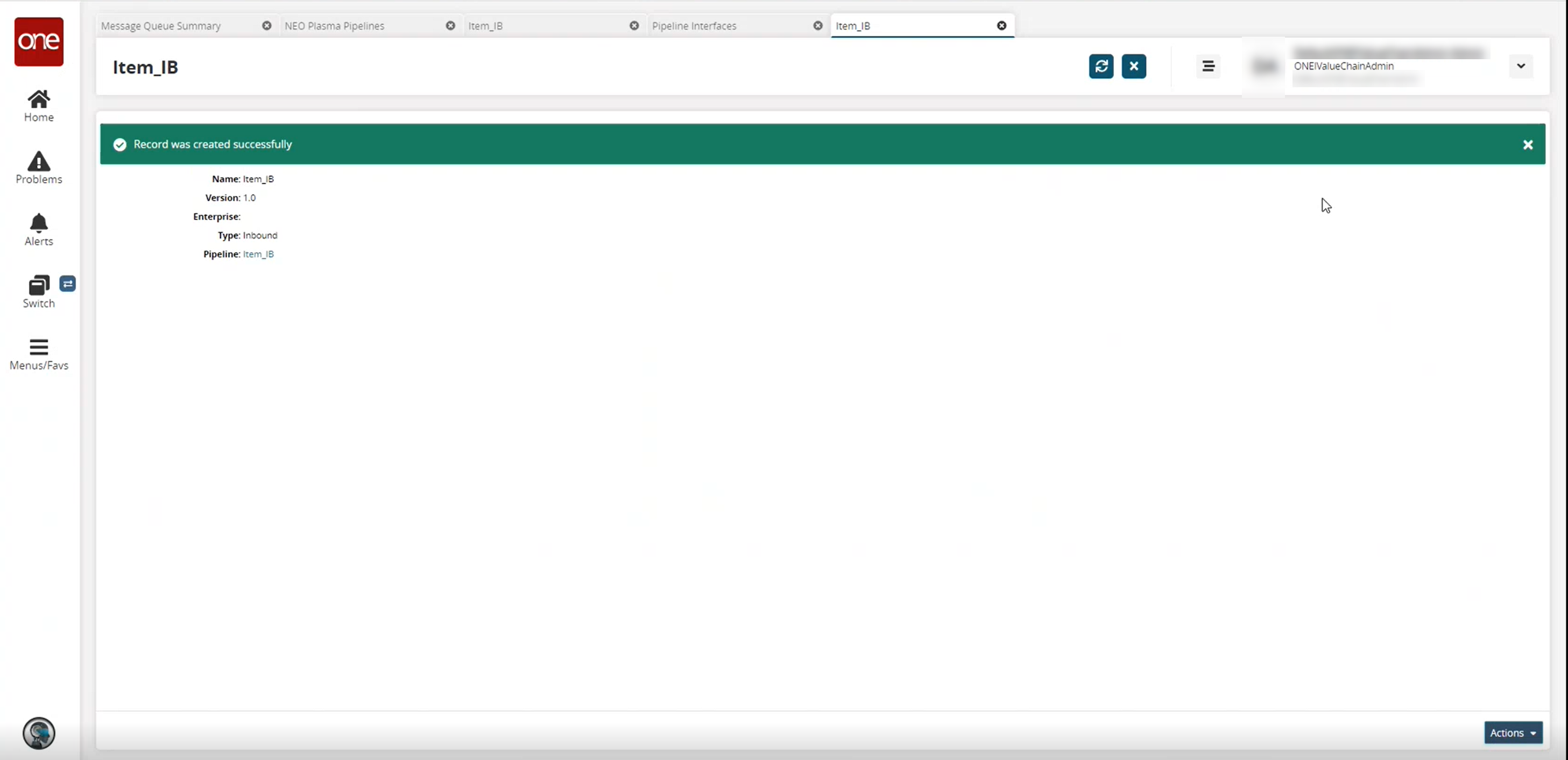

   The pipeline interface detail screen appears with a green success message.
