Issuing Tools and Parts

Providing the users with the capability to issue tools and issue part for relevant tasks during the In Progress state of the work order.

images/download/attachments/131840182/awaiting_Parts_and_awaiting_tools_task_state_3.5-version-1-modificationdate-1647593629000-api-v2.jpg

  1. Click the contextual menu (blue triangle) icon under the Task Number column and then click Issue Tools to issue tools for that specific task.

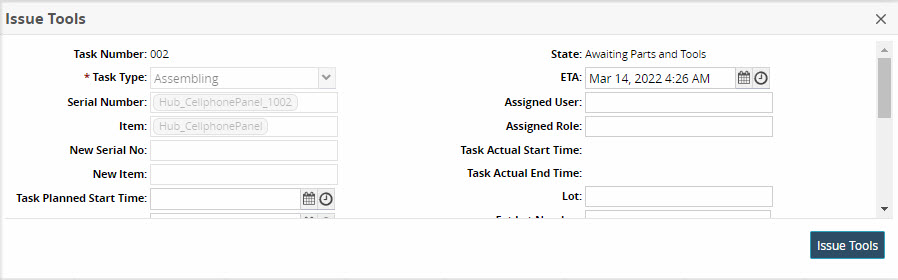

    The Issue Tools popup displays.

    images/download/attachments/131840182/Issue_tools_Tools_addition_rev_db_only_3.5-version-1-modificationdate-1647593629000-api-v2.jpg



  2. Fill out the following fields. Fields with an asterisk ( * ) are required.

    These are the most relevant fields for this process. You may see additional fields on the screen which are not described in the following table.


    Field Name

    Description

    * Task Number

    The task number is auto-populated.

    * Task Type

    The task type value is auto-populated.

    Serial Number

    The asset item serialized number is displayed.

    Item

    The item type is auto-populated.

    Task Planned Start Time

    Click the calendar and date icon to update the details.

    Task Planned End Time

    Click the calendar and date icon to update the details.

    Parts Cost

    This field value is auto-populated.

    Parts Cost Currency UOM

    The unit of measurement for that currency is displayed. (For example: USD / CAD)

    State

    The present state of the task is auto-populated. ( Awaiting Parts and Tools )

    ETA

    Click the calendar and date icon to provide an ETA for the task.

    Assigned User

    If desired, type the name of the user.

    Assigned Role

    If desired, type the role of the user.

    Task Actual Start Time

    This value is system generated.

    Task Actual End Time

    This value is system generated.

  3. Click Issue Tools.
    The task tools are issued to the task and a success message appears. The state of the task changes from Awaiting Parts and Tools to Awaiting Parts.

Issue Part

images/5f2060781c900cdf1a81cbbdca4a36f703a3473be3edd02583b80e693ad8f24f.jpg

  1. Click the contextual menu (blue triangle) icon under the Task Number column and then click the Issue Part button to issue parts for that task.
    The Issue Part popup displays.

    images/download/attachments/131840182/Issue_Part_Tools_addition_rev_3.5_db_only-version-1-modificationdate-1647593629000-api-v2.jpg



  2. Fill out the following fields. Fields with an asterisk ( * ) are required.

    These are the most relevant fields for this process. You may see additional fields on the screen which are not described in the following table.


    Field Name

    Description

    * Task Number

    The task number is auto-populated.

    * Task Type

    The task type value is auto-populated.

    Serial Number

    The asset item serialized number is displayed.

    Item

    The item type is auto-populated.

    Task Planned Start Time

    Click the calendar and date icon to update the details.

    Task Planned End Time

    Click the calendar and date icon to update the details.

    Parts Cost

    This field value is auto-populated.

    Parts Cost Currency UOM

    The unit of measurement for that currency is displayed. (For example: USD / CAD)

    State

    The present state of the task is auto-populated. ( Awaiting Parts )

    ETA

    Click the calendar and date icon to provide an ETA for the task.

    Assigned User

    If desired, type the name of the user.

    Assigned Role

    If desired, type the role of the user.

    Task Actual Start Time

    This value is system generated.

    Task Actual End Time

    This value is system generated.

  3. Click the Issue Part button.
    The task parts are issued to the task and a success message appears. The state of the task changes from Awaiting Parts to Ready to Start.

    Note

    The task tools and task parts are picked from the inventory via the pick list from Warehouse Management > Issue Inventory.
